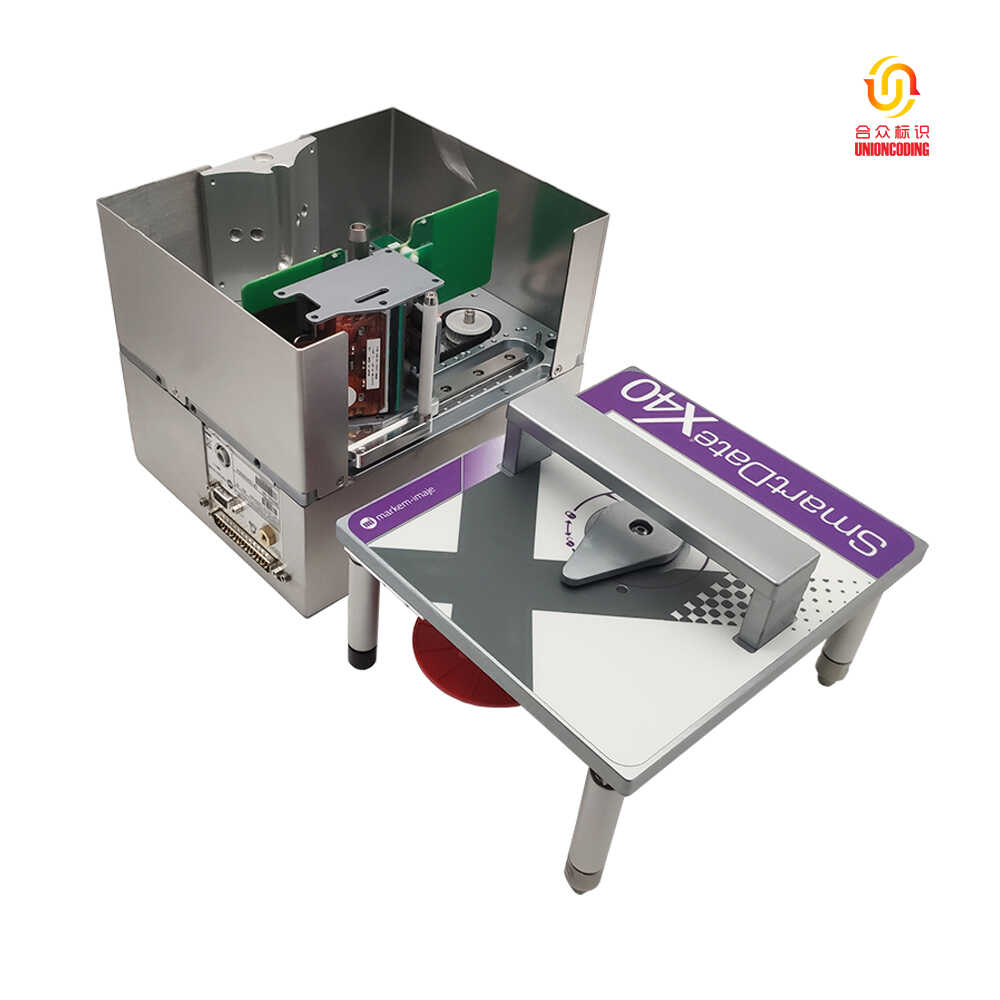

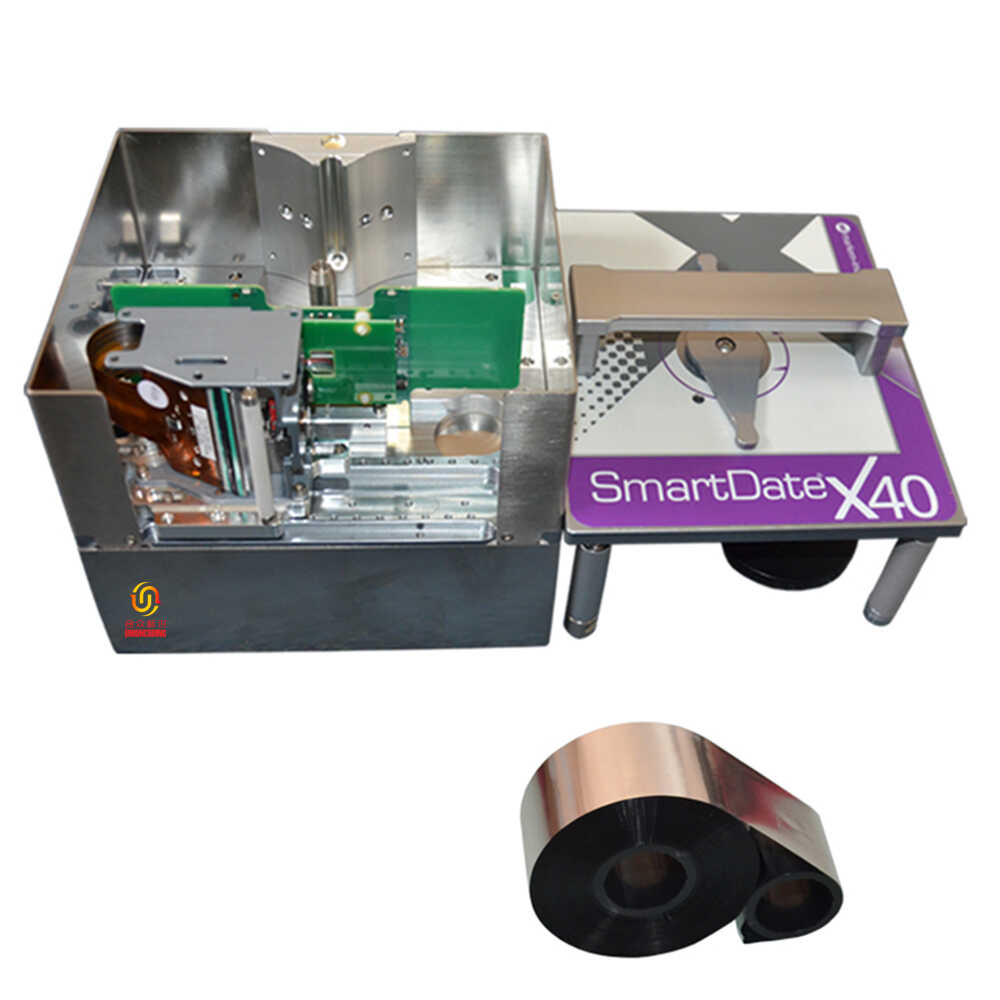

Markem X40
Markem X40
Markem Smartdate X40 is a transparent advanced coding solution machine
●Adopt environmental protection design
●Long normal operation time
●The performance of the production line can be improved even in severe environmental conditions.
union coding Markem X40 smartdate tto printer 32mm printhead for expiry date stamping machine
Product Description
Printing speed intermittent mode | up to 600 mm/S |
Printing speed continuous mode | 10 to 600 mm/S |
Printing speed continuous mode | 53mm or 32mmx75mm |
Printing area continuous mode | 53mm or 32mmx75mm |
Max Length TTO ribbo | 53mm or 32mmx75mm |
Type | Intermittent /Continuous |
Product advantages
● Direction for use
1. Wide band width ranging from 20 mm to 55 mm
2. Including Colos ® create 5.0 software with
automatic ribbon optimization function
3. 32 mm printhead option (53 mm for standard printheads)is lower cost, suitable for less than
35 mm
4. The standard 1100 meter color band reduces the numberof replacement times and the printing cost of a single product
●Description of application effect
1. The introduction of intelligent print head, with automatic setting and bad point detection function, can meet the requirements of high-quality printing
2. Optional promotion code printing function can print
a unique set of codes on each package
Product parameters
Power supply: 90 – 264 V, automatic switching; frequency: 47 / 63 Hz; Power: 150 VA
Air supply: up to 6 bar or 90 psi uncontaminated dry atmosphere
Gas consumption: 0.4ml minimum per print at 2.5bar
Operating temperature range: 0 to 40 Degree Humidity: 10% to 90%, non condensing

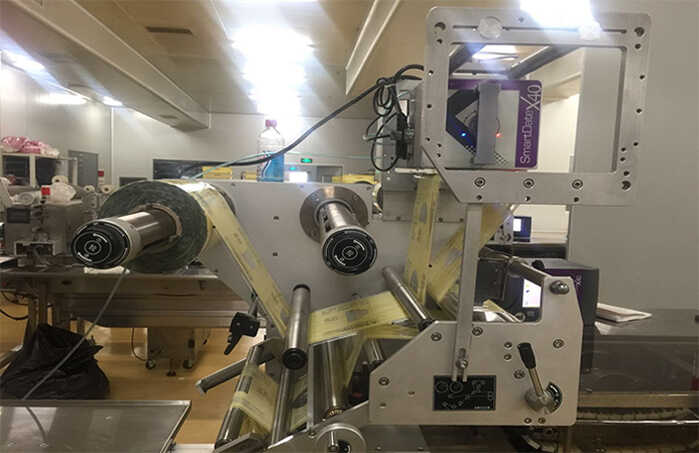

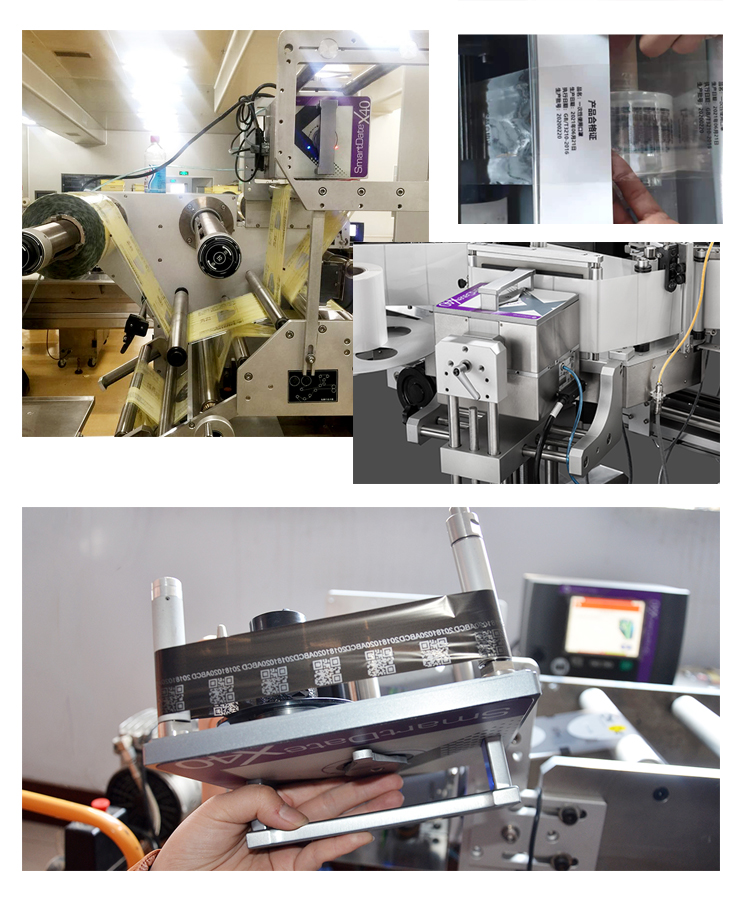

Product display
Print effect
hermal transfer technology combines a thermal printhead and a polyester ribbon
coated with ink on one side. Heat transfers the ink from the ribbon onto the labels
as they pass under the thermal printhead. The thermal printhead is made up of a
row of independent tiny resistors mounted on a ceramic support. These resistors are
then activated based on the characters to be printed, melting the ink on the ribbon
and “transferring” the selected characters to the labels.
We also provide a series of Marken products: Marken x45 Marken X60 Marken X65 Marken x30 and Marken accessories
Markemx45
Markemx60
Markemx65
Markemx30
